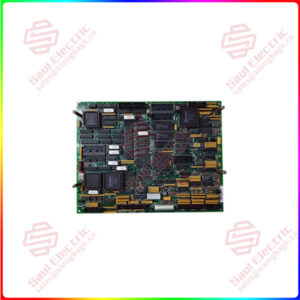

IS215ACLEH1A Application Control Layer Module GE

IS215ACLEH1A Application Control Layer Module GE

Manufacturers :GE
Model(s)  :IS215ACLEH1A
Additional Information :Application Control Layer Module
Estimated Shipping Size
Dimensions: 263 × 138 × 88mm
Weight:.2.35 kg
Country of Origin: United States of America



Categories: ,

Description

Overview


Essential details:IS215ACLEH1A Application Control Layer Module GE

Products Description

Type: Application Control Layer Module Package: Original
Warranty: One-year Condition: New
Quality: 10pcs Stock: In Stock
Shipping By: DHLUPSFedexEMSTNTAramex.
High Light:

IS215ACLEH1A Application Control Layer Module GE

Supply Ability

Supply Ability : 100 Piece/Pieces per Day

Packing & Shipping

Package Type: New and original factory separately sealed inner box

Delivery time: Prepare delivery inventory;

The goods will be packed according to the international standard.

1. We will deliver the goods within 3 working days after payment.

2. The new and original factory seal the inner box separately

3. We can send it to you by DHL/TNT/UPS/EMS/ fedex.

Please contact us directly and we will deliver the goods according to your requirements. Best quality assurance

4. We promise that all goods we supply are 100% new and original

5. One year warranty (after delivery date).

Payment method: We accept telegraphic transfer

IS215ACLEH1A

Assembly Level 215, Higher Assembly and Added Components
Board Description Application Control Layer Module
Board Type Control Board
Manuals GEH-6632 and GEI-100434
Mounting Location Innovation Series Drive or EX2100 Rack
Number of COM Ports Two
Number of Ethernet Ports Two

Product Description

The primary function of the IS215ACLEH1A is to be used as a microprocessor-based controller. This model is part of a series of application control layer modules within the EX2100 series which was produced by General Electric Industrial systems. This board is the first of the ACLE modules and this board is equipped with PCI (peripheral component interconnect) controllers and two Ethernet ports.

When the IS215ACLEH1A model is being mounted it will either be mounted in an Innovation Series Drive or an EX2100 Control Rack. This board has several LEDs, these are the Active, OK, ENET, Status, and Flash indicators, each indicator has a different function, for example, the Active LED will be completely solid when the CPU (central processing unit) is accessing the memory component. One of the software features of the IS215ACLEH1A model is the basic input/output system (BIOS), which will initialize and identify the other hardware forms. The BIOS feature supports the serial loading of an operating system.

While the IS215ACLEH1A model is mostly obsolete at this time it can still be found. The best manual to use with the IS215ACLEH1A model is the GEI-100434 Application Control Layer Module (ACL) manual.

Frequently Asked Questions about IS215ACLEH1A

What is the controller difference between the IS215ACLEH1A and IS215ACLAH1A models?

Nothing, both boards are Application Control Layer Modules.

What board is the IS215ACLEH1A mounted with?

The IS215ACLEH1A model is typically mounted in controllers M1 or M2 of the EBKP Backplane.

What board does the IS215ACLEH1A model share responsibility with?

The IS215ACLEH1A board shares responsibility with the DSPX module. Both modules are microprocessor-based controllers.

Are there any physical differences between the ACLE and ACLA boards?

Yes the ACLA board is a smaller module, being described as a double-slot 3U high module, while the ACLE board is also a double-slot but is a 6U high module.
