Description
Overview

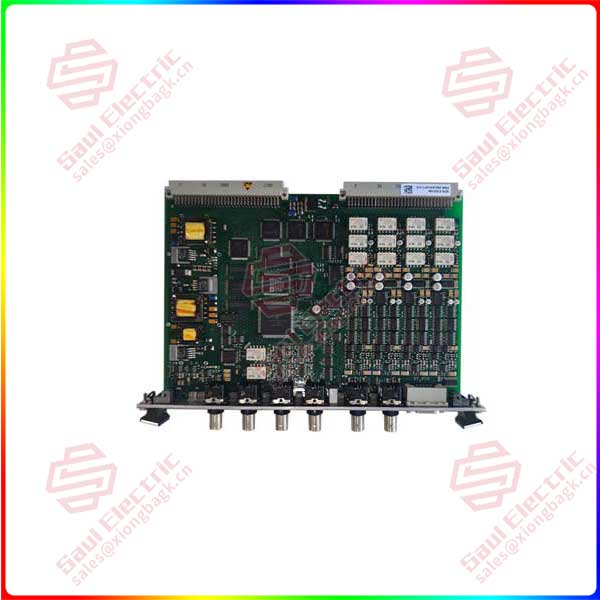

Essential details：VM600 MPC4 200-510-071-113 Mechanical protection card
Product Description
The VM600 MPC4 200-510-071-113 is a mechanical protection card offered by the Vibro-Meter® product line and is a core component of the VM600 family of Mechanical Protection systems (MPS). Below are the detailed product details of this product:
Product Overview:
VM600 MPC4 200-510-071-113 is a high performance vibration monitoring card designed to monitor the vibration of rotating machinery in real time. It can measure parameters such as vibration speed, acceleration and displacement, and carry out data analysis and report generation through software.
Product parameters:
Dynamic signal input: 4 channels, each channel can accept acceleration, speed, displacement and other signals.
Speed input: 2 channels for monitoring the speed of the equipment.
Measuring range: 0.1Hz to 10kHz.
Accuracy: ±0.5%.
Resolution: 0.01Hz.
Measurement mode: time waveform, FFT, spectrum, envelope.
Data analysis function: peak detection.
Data acquisition: 24-bit data acquisition, high signal-to-noise ratio data processing, high-resolution FFT up to 6400 lines per 500 ms.
VM600-MPC4
Product parameter
Input voltage: DC +5 V.
Power consumption: 40 mA x 16(single relay).
Temperature: The storage temperature ranges from −40 to +85°C, and the operating temperature ranges from −25 to +65°C.
Humidity: 0 to 90% non-condensing.
Physical dimensions: Height 6U(262 mm), width 20 mm, depth 125 mm, weight 0.30 kg.
Product features:
High-precision monitoring: Using high-precision sensors and signal processing technology, it can accurately monitor the vibration state of the equipment.
Multi-channel input: supports synchronous monitoring of multiple vibration channels to meet the monitoring needs of different equipment.
Flexible protection function: provides a variety of protection functions, such as amplitude alarm, frequency alarm, phase alarm, etc., can be configured according to actual needs.
Easy configuration: Friendly user interface for easy parameter setting and status monitoring.
Modular design: Modular structure, easy installation and maintenance.
APPLICATION VM600 MPC4 200-510-071-113 Mechanical protection card
VM600 MPC4 200-510-071-113 is widely used in a variety of industrial fields, including but not limited to rotary machinery (pumps, fans, compressors, motors, bearings, etc.), machine tools (lathes, milling machines, grinders, drill presses, etc.), automotive manufacturing (engines, transmissions, body bodies, etc.), and aerospace (aircraft, etc.).
With its high precision, multi-channel monitoring, flexible configuration and self-test functions, this product provides comprehensive protection and monitoring of machinery and equipment, ensuring the normal operation and predictive maintenance of equipment.
