PP885R 3BSE069296R1 PP885 high-performance industrial touch screen

Description

Overview

Essential details：PP885R 3BSE069296R1 PP885 high-performance industrial touch screen

Product Description

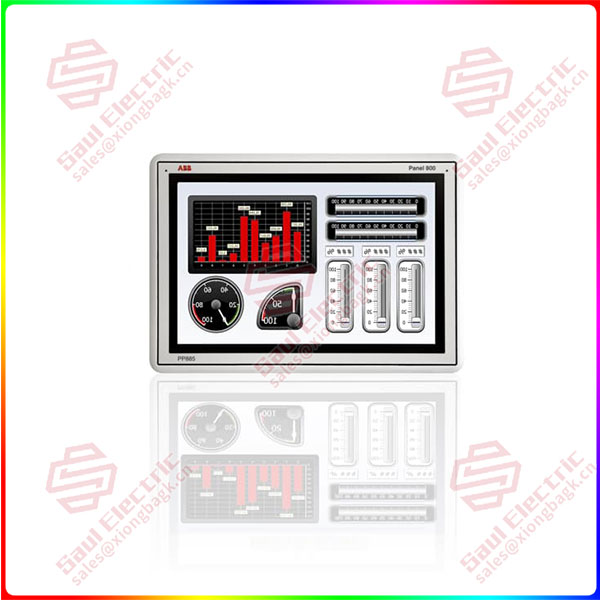

The ABB PP885R 3BSE069296R1 is a high-performance industrial touch screen belonging to the ABB Panel 800 series. Below are the detailed product details of this product:

Product Overview:

The ABB PP885R 3BSE069296R1 is mainly used for human machine interface (HMI) to provide an intuitive and friendly operating interface for industrial automation systems.

Main features:

High resolution touch screen: provides clear, delicate display effect and supports multi-touch.
Rugged: Designed for industrial environments, with a high level of protection, can adapt to harsh working conditions.
Rich features: Support a variety of display elements, such as text, graphics, animation, etc., can create complex interfaces.
Flexible configuration: With ABB’s Panel Builder software, the touch screen can be flexibly configured and programmed.
A variety of communication interfaces: support a variety of communication interfaces, can communicate with PLC, DCS and other devices.

PP885 3BSE069276R1

Product parameter

Article number 3BSE069270R2 3BSE069271R2 3BSE069272R2 3BSE069273R1 3BSE069274R1
Display size 4.3″ 7″ 10.4″ 7″ 10,4″
Display resolution, ratio 480 × 272 (16:9) 800 × 480 (16:9) 640 × 480 (4:3) 840 x 480 (16:9) 640 × 480 (4:3)
Display colors TFT-LCD 64k LED backlight
Brightness (cd/m2
) 350 350 450 350 450
View angle (H/V) 140° / 115° 140° / 130° 160° / 140° 140° / 130° 160° / 140°
Dimming Yes
Interaction type Resistive touch, 1 million finger touch operations Key, 1 million key press operations
Processor ARM9 (400 MHz)
Main memory 128 MB (DDR2)
Application memory 80 MB
External storage media 1 × SD card slot (or SDHC with latest image loaded)
Realtime clock Yes
Ethernet (shielded RJ 45) 1 × 10/100 Base-T
USB 1 x USB 2.0, max. 200 mA
Serial port 1/2 2 combined ports: 2 × RS232, 2 × RS422/485
Dimension W×H×D (mm) 145 × 103 × 49 204 × 143 × 49 280 × 228 × 51 410 × 286 × 83
Cut-out dimension W×H (mm) 128 × 87 187 × 126 262 × 209 394 × 270
Mounting depth (mm)(1) 43 (143) 44 (144) 76 (176)
Mounting Panel Mount and VESA
50 × 50
Panel Mount and VESA 75 × 75
Net weight (kg) 0.5 0.8 1.5 1.7 3.8
Frame material, front foil Powder-coated aluminum, Polyester Autotex EBA180L Powder-coated aluminum, Polyester Autotex F150.
Membrane switch keyboard with metal domes.
Power supply +24 VDC (18-32 VDC)
Power consumtion 3.6 W 6.0 W 9.6 W 6.0 W 9.6 W
Protection (front/rear) IP66 / IP20 IP65 / IP20
Operating temperature -10 to +60 °C
Relative operating humidity 5-85% non-condensing
Storage temperature -20 to +70 °C
Vibration and shock 0.7 G / 10 G
Environmental and
Certification (2)
CE, UL508(3), DNV(3) CE, UL, DNV
RoHS compliance: EN 50581:2012
WEEE compliance: DIRECTIVE/2012/19/EU
