Essential details：PI01 | pulse input module | Pulse/Frequency Input module 8-CH

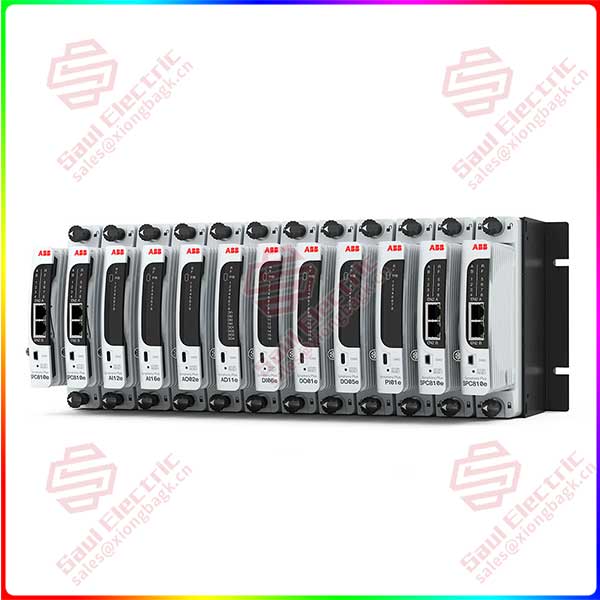

Product Description
The PI01 pulse input module processes up to 8 Pulse Input signals. Each channel is individually CH-2-CH isolated and is independently configurable for Totalize, Frequency, Period or Duration mode pulse inputs. FC 221 (I/O Device Definition) sets PI module operating parameters and each input channel is configured using FC 229 (Pulse Input CH) to set indivdual input channel parameters such as pulse input mode, engineering units, High/Low alarm state, etc.
The PI01 module supports pulse counts from 0 to 16,777,215, frequency input range from 0.5 Hz to 100 kHz, and Period or Duration input ranges from 10 µsec to 30 seconds.
Features and benefits
- 8 individually CH-2-CH isolated Pulse Input channels supporting:
- Totalize: 0 to 16,777,215
- Frequency: 0.5 Hz to 100 kHz
- Period or Duration: 10 µsec to 30 seconds
PI01
Product parameter
Product ID:PI01
ABB Type Designation:PI01
Catalog Description:Pulse/Frequency Input module, 8-CH
Long Description:0.5 Hz -100 kHz, Individual Channels Isolated. Use Base xBS01-FPH, xBS01-FPN or xBS01-EPD
Product Net Depth / Length:250 mm
Product Net Height:80 mm
Product Net Width:200 mm
Product Net Weight:0 kg
ABB Type Designation:PI01
Catalog Description:Pulse/Frequency Input module, 8-CH
Long Description:0.5 Hz -100 kHz, Individual Channels Isolated. Use Base xBS01-FPH, xBS01-FPN or xBS01-EPD
Product Net Depth / Length:250 mm
Product Net Height:80 mm
Product Net Width:200 mm
Product Net Weight:0 kg
| Article number | PI01 |
| Type | Pulse Input |
| Life cycle status | ACTIVE |
| Number of channels | 8 |
| Signal type | PI |
| HART | No |
| SOE | No |
| Redundancy | No |
| Form factor | Standard (190 mm) |
| Mounting | Horizontal Row or Vertical Column |
| MTBF (per MIL-HDBK-217-FN2) | PR E: 338,368 Hours |
| MTTR (Hours) | 1 Hours |
APPLICATION PI01 | pulse input module | Pulse/Frequency Input module 8-CH
| Module power requirements | 24 VDC ± 10%, 59 mA typical, 66 mA max |
| Module power connection | POWER TB on cHBX01L or VBX01T |
| Field IO power | 24 VDC ± 10%, 1.3 mA typical, 1.5 mA max per CH |
| Overvoltage category | Category I for power, inputs or outputs. Tested according to EN 61010-1 |
| Max field cable length | 600 meters (1968 feet) |
| Number of Channels | 8 Pulse Input Channels |
| Signal ranges and types | Pulse Inputs: 24 VDC |
| A/D Conversion | ±0 count |
| A/D Resolution | 0.0001 |
| A/D Update rate | 0.0001 |
| D/A Conversion | 0.0001 |
| Accuracy, FSR | Totalize: ±0 count Frequency: 0.01% Period: 0.01% Duration: 0.01% |
| Temp effect on accuracy | 0.015% @ 25°C (timebase accuracy) |
| Field signal to Logic isolation | Galvanically isolated, 1500 V up to 1 minute |
| Channel isolation | Individual CH-2-CH isolated, 1500 V up to 1 minute |
