GE IS420YDOAS1B Product Overview

The GE IS420YDOAS1B is a discrete output I/O Pack module designed for the GE Mark VIe and Mark VIeS turbine control system platforms. As a key component of the distributed I/O architecture, the GE IS420YDOAS1B provides the interface between industrial control logic and field output devices such as relays, solenoid valves, contactors, and actuator circuits. The module receives digital commands from the Mark VIe controller through Ethernet-based I/O networks and converts these commands into reliable relay output signals for field equipment operation. It is commonly used in gas turbine, steam turbine, and industrial power control applications where accurate output execution and diagnostic visibility are required.

The GE IS420YDOAS1B belongs to the Mark VIe YDOA discrete output I/O Pack family and is designed to work with compatible TRLY relay terminal boards. Depending on the terminal board configuration, the module can support up to 12 relay output channels and provides relay status monitoring functions for improved fault identification. The module supports both simplex and Triple Modular Redundancy (TMR) system architectures, allowing integration into standard control configurations as well as safety-related Mark VIeS applications.

In practical turbine control installations, the GE IS420YDOAS1B performs an important role in executing control actions generated by the turbine controller, including valve commands, auxiliary equipment switching, and protective shutdown outputs. Its compact distributed design allows installation close to field termination assemblies, reducing cabinet wiring complexity and improving system maintainability. For replacement projects, engineers should confirm the associated terminal board model, I/O network configuration, ToolboxST configuration database, firmware compatibility, and redundancy arrangement before commissioning.

Technical Specifications

Main Features and Advantages

High-speed discrete output control

The GE IS420YDOAS1B provides fast execution of digital output commands from the Mark VIe controller. With an output response time of approximately 6 ms, the module is suitable for applications requiring rapid switching of relays, solenoids, and auxiliary equipment.

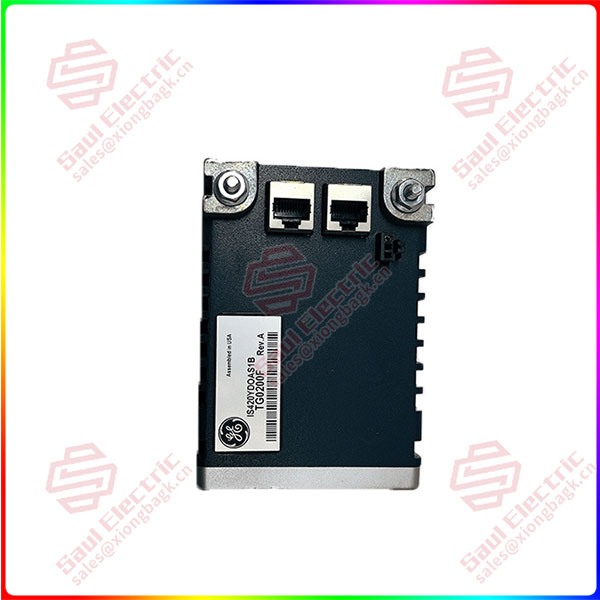

IS420YDOAS1B

Mark VIe distributed architecture compatibility

The module is specifically designed for GE’s Mark VIe distributed control environment. It connects with TRLY series terminal boards and communicates through the IONet architecture, allowing distributed placement of I/O components closer to field equipment.

Relay monitoring and diagnostics

The GE IS420YDOAS1B includes diagnostic capabilities that help maintenance teams identify output circuit issues. Relay and coil monitoring functions provide additional visibility into field output conditions, reducing troubleshooting time during system maintenance.

Simplex and TMR system flexibility

The module supports both simplex and TMR architectures. In standard turbine control applications, a single I/O Pack may be used, while safety-related Mark VIeS systems can employ redundant configurations with multiple I/O Packs to achieve higher fault tolerance.

Industrial environmental capability

Designed for turbine and power generation environments, the GE IS420YDOAS1B operates across a wide temperature range from -40°C to +70°C. This allows installation in industrial cabinets located in demanding operating conditions.

Simplified maintenance and replacement

For existing Mark VIe systems, replacing a failed output module can restore control functionality without major system modifications. However, engineers should verify terminal board compatibility, I/O assignment files, firmware revision, and controller configuration before replacement.

Application-specific verification

Although the hardware model may match, turbine control applications are usually customized. Before installation, maintenance teams should confirm output channel mapping, relay type, safety logic assignment, and field wiring documentation to avoid unexpected equipment behavior.

Application Fields

The GE IS420YDOAS1B is primarily applied in turbine control and industrial automation systems requiring reliable digital output management.

In gas turbine power plants, the module is used within GE Mark VIe turbine control systems to operate field devices such as fuel valves, auxiliary relays, ignition-related equipment, and turbine protection outputs. Reliable output execution is essential for maintaining stable turbine operation and responding quickly during abnormal conditions.

In steam turbine applications, the GE IS420YDOAS1B supports control commands for valves, auxiliary systems, and plant equipment. It works with the turbine controller to execute operational sequences during startup, loading, and shutdown procedures.

In combined-cycle power plants, the module is used as part of integrated turbine automation systems where gas turbines, steam turbines, and balance-of-plant equipment require coordinated control.

In industrial facilities such as chemical plants, refineries, and manufacturing plants, Mark VIe-based systems may be applied for mechanical drive turbines and power generation equipment. The output module provides the electrical interface between control software and physical field devices.

The GE IS420YDOAS1B is also suitable for turbine retrofit projects and lifecycle maintenance programs where existing Mark VIe or Mark VIeS systems require replacement I/O hardware while maintaining the original control architecture.

Related Products

• GE IS420YDOAS1A – Previous revision of the YDOA discrete output I/O Pack, used in earlier Mark VIe configurations.
• GE IS410TRLYS1B – Relay output terminal board paired with the IS420YDOAS1B for 12 Form-C relay output applications.
• GE IS410TRLYS1D – Relay terminal board with solenoid integrity sensing functionality for safety-related applications.
• GE IS410TRLYS1F – TMR relay terminal board designed for redundant safety output applications.
• GE IS420YAICS1B – Analog input I/O Pack for Mark VIe distributed control applications.
• GE IS420YDIAS1B – Discrete input I/O Pack used for digital field signal acquisition.
• GE IS420UCSBH3A – Mark VIe controller module used with distributed I/O components.
• GE Mark VIeS Functional Safety System – Safety control platform using compatible I/O Packs and terminal boards for SIL-rated applications.
