Description

Product Overview

IS230PCAAH1B (IS230PCAAHIB is handwriting‑typo) is the Core Analog I/O Pack (PCAA) for GE Speedtronic Mark VIe gas‑turbine control system. It is the core analog processing unit, working together with terminal boards IS400TCASH1AGD (TCAS) and IS400TCATH1ACB (TCA). It performs A/D‑D/A conversion, channel diagnostics, LVDT excitation and servo coil drive, communicating with Mark VIe main controller via dual redundant IONet Ethernet bus.

Gas‑turbine closed‑loop control and protection rely heavily on high‑reliability analog acquisition. IS230PCAAH1B supports simplex, dual‑redundant and TMR triple‑modular‑redundant architectures, which is critical for gas‑turbine anti‑trip safety. It supports hot‑swap under rack powered‑on status; field wiring stays on terminal boards during module replacement. Widely used as critical spare for combined‑cycle power‑plant Mark VIe cabinets during unit outages。

Technical Specifications

Parameter name	Parameter value
Product model	IS230PCAAH1B (IS230PCAAHIB = typo)
Manufacturer	GE General Electric
Product type	PCAA Core Analog I/O Pack
Applicable system	Speedtronic Mark VIe Turbine Control System
Total analog input channels	25 isolated channels
Supported signals	Thermocouple, 4‑20 mA, 0‑10 V DC, LVDT excitation & feedback, seismic vibration, pulse frequency, servo coil output
A‑D resolution	16‑bit
Accuracy	0‑10 V: ±0.5 %FS; LVDT: ±1.0 %FS; Servo output: ±3.5 %FS
Communication	Dual 10/100 Mbps IONet redundant Ethernet
Redundancy mode	Simplex / Dual / TMR triple modular redundant
Power supply	28 V DC ±5 % back‑plane supply
Isolation	1500 V AC channel‑to‑ground, channel‑to‑channel isolation
Feature	Hot‑swappable module, built‑in channel self‑diagnosis
Operating temperature	‑20 °C ~ +60 °C
Weight	Approx. 1.6 kg
Certifications	Power‑generation turbine‑control standards

Key Features and Advantages

multi‑signal universal analog processing: IS230PCAAH1B handles nearly all analog signals required for gas‑turbine control: exhaust thermocouple temperature, bearing temperature, compressor pressure, fuel‑valve LVDT position, shaft vibration, speed pulse and servo‑actuator drive output.

TMR‑ready triple‑modular‑redundant support: Three PCAA packs run in parallel under TMR configuration. Voting logic ensures bumpless control even one module fails, avoiding unnecessary turbine trip for critical protection loops.

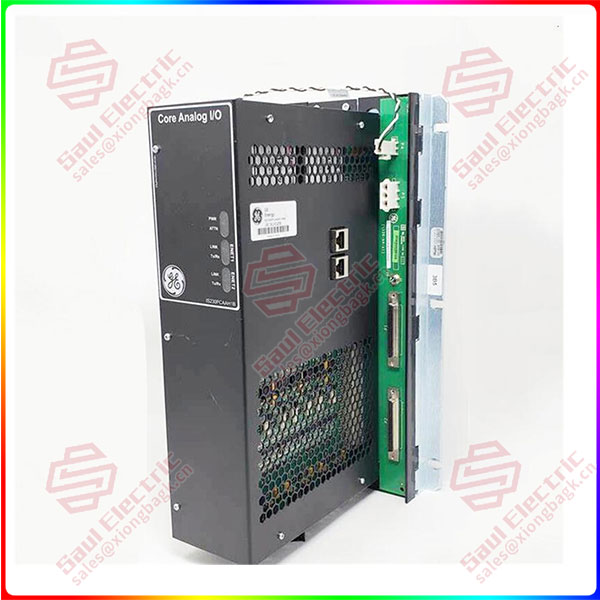

IS230PCAAHIB

hot‑swap capability: The I/O pack can be replaced without cabinet power‑off. Field sensors stay connected on TCAS/TCA terminal boards, greatly shortening outage maintenance time.

comprehensive built‑in diagnostics: Detect thermocouple open‑circuit, channel short‑circuit, excitation fault, communication link failure and power‑supply anomaly; send fault alarms to ControlST HMI for fast troubleshooting.

dual‑port redundant IONet communication: Two independent Ethernet ports implement network redundancy. Even one network path fails, real‑time analog data transmission between PCAA and Mark VIe main controller is maintained.

version compatibility note: IS230PCAAH1B requires ControlST software version V4.04.xx or higher; older firmware versions cannot recognize H1B hardware correctly.

ESD‑sensitive hardware: Anti‑static wrist‑strap is mandatory during handling and replacement.

Application Fields

IS230PCAAH1B is installed inside Mark VIe gas‑turbine control cabinets for combined‑cycle power plants, simple‑cycle peaking‑power stations and industrial captive‑power gas‑turbine units.

It completes high‑precision acquisition of turbine exhaust temperature, bearing‑bush temperature, compressor pressure, valve‑LVDT feedback, shaft vibration and rotational‑speed signals. Meanwhile it outputs servo drive signals to control gas‑turbine fuel valves, IGV actuators, realizing turbine speed, load regulation and over‑temperature / over‑speed protection functions.

During unit overhaul and spare‑replacement projects, it replaces ageing PCAA packs; existing TCAS/TCA terminal boards and all field sensor cables can be reused. It is also key spare‑part inventory for power‑plant maintenance‑workshops supporting GE gas‑turbine assets.

Installation and Maintenance

pre‑installation preparation: Wear ESD anti‑static wrist‑strap before handling IS230PCAAH1B. Even though module supports hot‑swap, strictly follow Mark VIe maintenance procedure. Verify ControlST software version meets hardware‑compatibility requirement. After installation, complete channel loop‑check, confirm signal acquisition and TMR‑voting status before putting turbine‑control system online.

maintenance recommendations: Check front‑panel LED status during unit outages. Keep complete ControlST project backup. If hot‑swap is performed under running status, monitor turbine‑control parameters for short‑term disturbance. Module contains no field‑serviceable assemblies; return defective hardware to GE‑authorized repair‑centres.

Product Warranty & Support

Each IS230PCAAH1B passes factory multi‑channel signal test, hot‑swap test and TMR‑redundancy validation before shipment. Standard equivalent warranty covers manufacturing defects for 12 months from delivery date. Spare‑part sourcing, remote‑technical guidance and SAT‑support services are available for spare‑replacement, loop‑check and fault‑diagnosis. Application‑engineers offer support for ControlST version matching and abnormal analog‑signal troubleshooting. Long‑term spare‑parts inventory mitigates obsolescence risk for installed Mark VIe turbine‑control assets.

IS230PCAAH1B PCAA Core Analog I/O Pack
