GE IS220PTURH1A Product Overview

The GE IS220PTURH1A is a Turbine Specific Primary Trip (PTUR) I/O Pack designed for the GE Mark VIe Speedtronic turbine control system. As a dedicated turbine protection interface module, the GE IS220PTURH1A provides the electrical interface between critical turbine protection sensors, terminal boards, and Mark VIe controllers. It is responsible for acquiring high-priority turbine safety signals, processing protection-related inputs, and transmitting status information through the Mark VIe distributed I/O network. The module is mainly used in applications where rapid detection of abnormal turbine conditions and reliable trip signal processing are required.

The GE IS220PTURH1A belongs to the Mark VIe Turbine Specific I/O Pack family and is specifically configured for primary turbine trip functions. Unlike general-purpose I/O modules, this module is designed around turbine protection requirements and interfaces directly with dedicated turbine terminal boards such as the IS200TRPAH1A or compatible turbine protection termination assemblies. The module integrates a processor board, turbine-specific acquisition circuitry, and communication hardware, allowing direct handling of turbine signals such as speed inputs, emergency trip signals, and other protection-related measurements.

In actual power generation environments, the GE IS220PTURH1A operates as a critical protection layer within gas turbine and industrial turbine control systems. It supports primary trip functions by collecting field signals, performing diagnostics, and communicating turbine protection information to the Mark VIe control architecture. The module is commonly installed in applications requiring dependable turbine shutdown coordination, including overspeed protection, emergency stop processing, and critical equipment monitoring. For replacement projects, engineers should verify terminal board compatibility, Mark VIe firmware revision, I/O configuration database, network addressing, and existing protection logic before commissioning.

Technical Specifications

Main Features and Advantages

Primary turbine protection interface

The GE IS220PTURH1A is designed specifically for turbine protection applications. It provides a dedicated signal-processing path for critical shutdown and protection inputs, reducing dependence on additional signal conditioning hardware between field devices and the turbine controller.

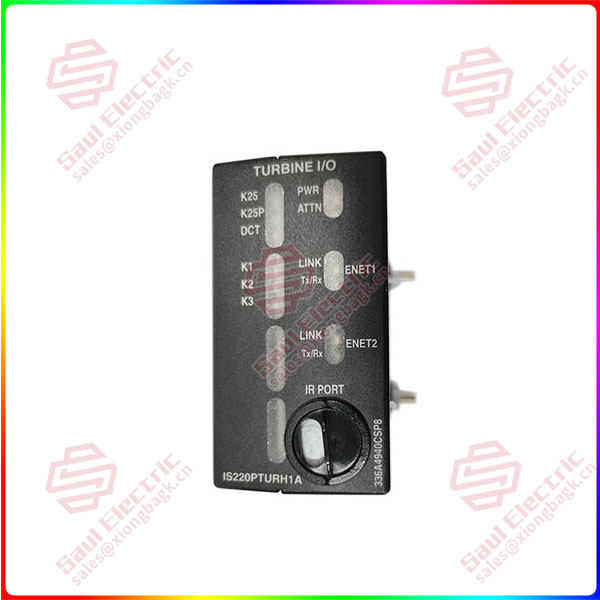

IS220PTURH1A

Turbine-specific signal processing

Unlike standard discrete or analog I/O modules, the PTUR architecture is optimized for turbine operating parameters. The module supports direct connection to turbine protection devices and processes signals associated with turbine speed monitoring, emergency trip circuits, and other protection functions.

Dual Ethernet communication

The GE IS220PTURH1A communicates with Mark VIe controllers through dual Ethernet interfaces. This distributed architecture allows the module to be installed close to field termination points while maintaining communication with controller networks. The dual network arrangement also supports higher system availability in properly configured Mark VIe installations.

Integrated diagnostics

The module includes onboard diagnostic functions and LED indicators for maintenance troubleshooting. Engineers can use module status information to identify communication issues, hardware faults, and field signal problems during commissioning and service activities.

Direct turbine equipment interface

The GE IS220PTURH1A eliminates many intermediate interface components by connecting turbine-specific sensors and protection circuits directly through compatible terminal boards. This reduces wiring complexity and provides clearer diagnostic paths for maintenance teams.

Mark VIe system compatibility

The module is designed for GE Mark VIe turbine control platforms and operates as part of the distributed I/O architecture. Before installation, engineers should confirm software configuration, terminal board model, firmware revision, and application compatibility because turbine protection modules are closely linked to the overall control design.

Lifecycle maintenance support

Many turbine facilities continue operating Mark VIe systems for extended service periods. Maintaining compatible GE IS220PTURH1A modules helps support existing turbine protection architectures during repair, retrofit, and spare-part replacement activities.

Field replacement considerations

Replacement of a PTUR module requires more than matching the part number. Proper maintenance procedures should include verification of trip logic assignment, terminal wiring, network configuration, and protection testing before returning the turbine to operation.

Application Fields

The GE IS220PTURH1A is primarily applied in turbine control and protection systems where fast response and reliable shutdown processing are required.

In gas turbine power plants, the module is used within GE Mark VIe Speedtronic systems to process turbine protection signals including overspeed-related inputs, emergency shutdown signals, and critical turbine operating conditions. It provides a communication path between field protection devices and the turbine control system.

In combined-cycle power plants, the GE IS220PTURH1A supports gas turbine protection architectures where reliable trip execution is required to protect rotating equipment and associated auxiliary systems.

In steam turbine installations, the module can support turbine protection applications involving emergency trip circuits and critical monitoring signals. It works together with Mark VIe controllers and terminal boards to maintain protective control functions.

In oil and gas facilities, turbine-driven compressors and mechanical drive systems often require dedicated protection hardware. The GE IS220PTURH1A supports these applications by providing a direct interface for turbine-specific safety signals.

In industrial generation plants, including captive power stations and process facilities, the module supports turbine lifecycle maintenance projects where existing Mark VIe hardware remains in service.

The GE IS220PTURH1A is also used in retrofit and spare-part programs for installed Mark VIe systems. Engineers typically evaluate terminal board configuration, controller software revision, protection settings, and field wiring documentation before replacement.

Related Products

• GE IS220PTURH1B – Updated PTUR primary turbine trip I/O Pack revision with similar Mark VIe protection functionality.
• GE IS200TRPAH1A – Primary Trip Terminal Board used with PTUR modules for turbine protection signal termination.
• GE IS220PPROH1A – Mark VIe Backup Turbine Protection I/O Pack used for additional turbine protection functions.
• GE IS220PPRAH1A – Turbine Protection I/O Pack designed for Mark VIe turbine monitoring and protection applications.
• GE IS220TTURH1C – Turbine Terminal Board interface component used in Mark VIe turbine control configurations.
• GE IS220PDIAH1A – Mark VIe Discrete Input I/O Pack for general field contact signal acquisition.
• GE IS220YDOAS1B – Mark VIe Discrete Output I/O Pack for relay output control.
• GE IS420UCSBS1A – Mark VIeS UCSB Safety Controller used in functional safety turbine control applications.
