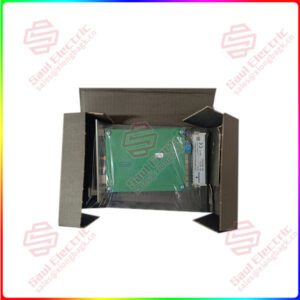

Essential details：H1127-0101 Marine controller

Product Description

The H1127-0101 is a Marine controller manufactured by Rolls-Royce. The following are its product details:
Product overview
The H1127-0101 is a Marine controller from Rolls-Royce’s Unified Platform (UP) product line for controlling Marine machinery and systems. It provides a powerful and easy-to-use human-machine interface that integrates ergonomic joysticks, touch screens that can call and control systems, and logically displayed system status information designed to reduce the operator’s cognitive load and increase the efficiency of workflows.
Main feature
High performance: Precise and reliable control of the ship’s position, heading and speed.
User-friendly: Provides a powerful and easy-to-use human-machine interface for operators to monitor and control the ship’s parameters.
Robust and reliable: The structure is strong and can withstand the harsh Marine environment.
Flexible configuration: Can be configured to meet the specific requirements of various applications.
High accuracy: Provides precise ship position and attitude control.
High reliability: redundancy design is adopted to ensure reliable operation of the system.
Easy to use: The operation interface is simple and easy to understand, convenient for operators to use.
Powerful: Support a variety of DP functions, such as dynamic positioning, trajectory tracking, station holding and so on.

H1127.0101

Product parameter

Power Supply: 24 VDC
Power consumption: less than 100 W
Operating temperature: -20°C to 70°C
Humidity: 5% to 95% non-condensing
Protection class: IP65
Size: 500 mm x 300 mm x 200 mm
Weight: Less than 20 kg
Product specification
Control mode: man-machine interaction through touch screen and control lever.
Operating voltage: Usually 220V, but the specific value may vary by model.
Operating temperature range: -20°C to +100°C.
Accuracy: The accuracy can reach 0.1% to 0.5%.

APPLICATION H1127-0101 Marine controller

H1127-0101 is widely used in a variety of ship operations, including but not limited to:
Platform Supply Vessel (PSV)
Offshore Operation Vessel (OSV)
tugboat
Research ship
yacht
Function and use
Maintain ship position in rough sea conditions: Ensure that the ship maintains a stable position in rough sea conditions.
Delicate operations at sea: lifting, drilling, etc.
Safe handling of ships in narrow waterways or harbours: Improve the safety of ship handling in narrow waterways or harbours.
Protect the Marine environment: prevent ships from touching the seabed or other ships to reduce the risk of accidents.
Series and features
The H1127-0101 is a key component of Rolls-Royce’s Marine automation system that controls propulsion, steering, navigation and communications, seamlessly integrating with multiple onboard networks for data exchange and centralized control. It is designed to meet strict maritime regulations and safety standards, and has a modular design that is easy to install, maintain and expand.
