GF D233 A (GFD233A) / 3BHE022294R0101 — PEC80 LIN Control Board
Product Overview

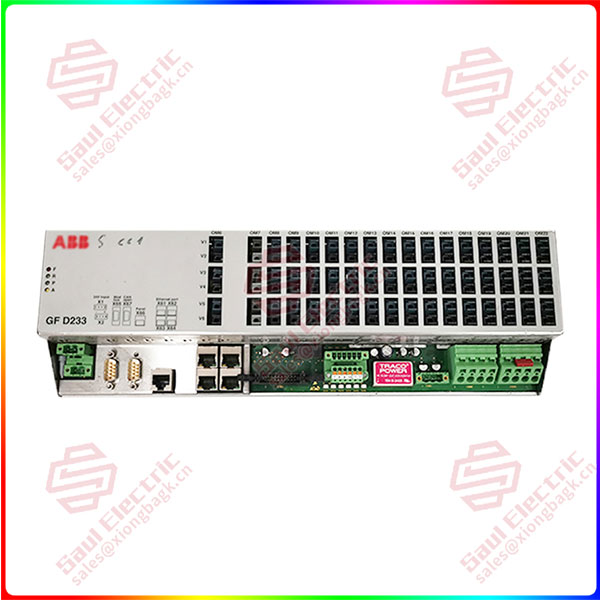

The GF D233 A, traded as GFD233A and ordered from ABB under the article number 3BHE022294R0101, is a control and interface board of ABB’s PEC80 platform — the Power Electronic Controller family within the AC 800PEC product line. ABB’s own catalog identifies the unit by the type designation LIN-board and the full configuration marking GF D233 A: PEC80-LIN (NS=1), where LIN denotes the line-side configuration of the PEC80 controller. The front panel of the module carries five voltage-sense terminals (V1–V5), sixteen digital inputs (DI1–DI16), a network port, and status indication, which is consistent with a board whose job is to bring the converter’s line-side signals into the control electronics and to interface the controller with the rest of the power-electronic system.
The PEC80 platform is used by ABB in auxiliary converters — notably railway auxiliary power converters — and in a broad range of industrial converter equipment, where it performs the high-speed control that power electronics demand. The GF D233 A board is a field-replaceable spare inside that architecture: it is not a generic I/O card but a configuration-controlled unit, and ABB explicitly requires that the full article number, designation, and NS setting be matched against the installed equipment record before replacement.
A fact that matters for any spares plan: ABB’s product catalog marks 3BHE022294R0101 as no longer for sale, with the official replacement identified as 3BHE046836R0101 (the GF D563 board of the same control family). For a fleet still running PEC80-based converters, this makes the GFD233A a managed-end-of-life spare: either the last remaining original articles are secured, or the replacement path and its configuration impact are evaluated while the installed base is still fully documented.
Technical Specifications
| 参数名称 | 参数值 |
|---|---|
| Product Model | GF D233 A (GFD233A) |
| Order Code | 3BHE022294R0101 |
| Manufacturer | ABB (PEC80 / AC 800PEC platform) |
| Product Type | Control/interface board — PEC80-LIN configuration (spare part) |
| Type Designation | LIN-board |
| Catalog Configuration | GF D233 A: PEC80-LIN (NS=1) |
| Front Panel | Voltage sense inputs V1–V5; digital inputs DI1–DI16; network port |
| Platform | PEC80 Power Electronic Controller; auxiliary and industrial converters |
| Product Status | Discontinued — officially replaced by 3BHE046836R0101 |
| Origin / Class | ABB Switzerland / China; spare part, tariff 85372000 |
GFD233A 3BHE022294R0101
Key Features and Advantages
A configuration-controlled spare, not a generic card: ABB identifies the GF D233 A by its full designation and NS setting, because the same physical board family serves different configurations with different behavior. Ordering by article number alone is insufficient — the 3BHE022294R0101 must match the installed unit’s designation record. That discipline is what keeps a replacement from becoming the source of a converter fault.
Line-side signal handling in one board: With five voltage-sense inputs and sixteen digital inputs on the front panel, the GF D233 A concentrates the converter’s line-side acquisition at the controller, reducing the wiring and termination hardware a line interface would otherwise require. The measurement and status signals arrive at the control electronics in the form the PEC80 firmware expects — no external conditioning needed.
Built for power-electronics control speed: As part of the PEC80 platform, the board operates in the control loop of thyristor- and IGBT-based converters, where update rates and deterministic behavior are a given of the architecture rather than an option. This is the environment of AC 800PEC: control designed for the millisecond world of power conversion.
Traceable platform heritage: PEC80 is a documented ABB platform for auxiliary converters and industrial converter equipment, which means the board’s role, configuration rules, and maintenance documentation exist within ABB’s engineering records — the basis a plant needs to maintain the equipment safely after commissioning.
An explicit upgrade path: Because ABB has formally replaced 3BHE022294R0101 with 3BHE046836R0101, the spares strategy is defined rather than speculative. Plants can either stock the last original articles or plan the transition to the replacement board with the converter documentation in hand — a clarity that older orphaned boards rarely offer.
Wiring-friendly field replacement: The screw-terminal front layout with clearly labeled V and DI positions allows a trained technician to transfer wiring from a failed board to its replacement with minimal risk of misconnection, keeping converter downtime measured in hours rather than days.
Application Areas
The GF D233 A operates inside PEC80-based power-electronic equipment, where its line-side measurement and interface functions serve the converter’s control. In railway auxiliary converters — the static converters that supply train auxiliary power from the line or traction circuit — the board handles the line-side signals that the control algorithm uses to regulate the auxiliary supply under fluctuating input conditions.
In industrial converter equipment, the same PEC80 control architecture appears in medium-voltage and power-conversion systems where the 3BHE022294R0101 board connects the converter’s line-side sensing to the controller: voltage measurement for synchronization and monitoring, and digital inputs for status, interlocking, and protection logic.
The board’s second life is in the spares cabinet: for operators of converters that use the PEC80-LIN configuration, the GF D233 A is a defined spare with a defined replacement path. Maintaining an accurate record of which configuration (NS value) each installed board carries is a prerequisite for both routine replacement and the eventual transition to the successor board, and it is precisely the discipline ABB prescribes in its product documentation.
Related Products
- 3BHE046836R0101 (GF D563 / GFD563A101) — the official ABB replacement for the discontinued 3BHE022294R0101, in the same control family.
- GF D563A102 (3BHE046836R…) — later variant of the replacement GF D563 board for subsequent AC 800PEC configurations.
- 3BHE022294R0103 (GFD233) — alternate article number for the same GF D233 designation, revision R0103.
- GFD233A103 (3BHE022294R0103) — A103 designation variant of the GF D233 board family.
- GF D212A (GFD212A, 3BHE020356R0101) — sister GF D-series gate firing / drive interface board for ABB industrial and medium-voltage converters.
- PP D113 (PPD113) — AC 800PEC processor board of the same control platform, used in PEC-based control systems.
Installation and Maintenance
Installation preparation: Before handling the 3BHE022294R0101, de-energize the converter cubicle and confirm that all power-stage capacitors are discharged and locked out — power-electronic equipment retains dangerous voltages after shutdown. Compare the incoming board’s full identification against the installed unit: article number, designation GF D233 A, and the NS configuration marking must agree, because a GFD233 with a different NS setting is not a drop-in replacement. Inspect the connectors and the front-panel terminals (V1–V5, DI1–DI16) for damage, verify the network port and cable assignment against the cabinet drawings, and record the board’s configuration before seating it. Commission with the converter’s own test sequence, checking the line-side measurement polarity and the status inputs against the control system’s expectations.
Maintenance advice: Because 3BHE022294R0101 is discontinued, treat the board as an end-of-life managed asset: keep an accurate inventory of every installed GF D233 A with its NS marking, secure verified spare articles while they are still available, and evaluate the 3BHE046836R0101 replacement path with the converter documentation before a failure forces the decision. Use the front-panel status indication during routine rounds, and investigate any unusual line-side readings or status patterns rather than clearing alarms. Handle the board with ESD precautions, store spares in anti-static packaging in a dry, temperate environment, and have configuration records available so that a replacement — original or successor — can be installed without guesswork.
