Description
Overview
Essential details：DO01 | ABB | digital output module | DO module 16-CH 24 / 48 VDC max 250mA
Product Description
The DO01 digital output module provides up to 16, CH-2-CH isolated transistor type, 24 to 48 VDC output signals. The open-collector outputs of the module are capable of sinking or sourcing up to 250 mADC.
FC 221 (I/O Device Definition) sets DO module operating parameters and each output channel is configured using FC 225 (Digital Output CH) to set indivdual output channel parameters such as alarm state setting, default state on loss of communication with controller, etc.
Features and benefits
- 16 individually CH-2-CH isolated DI channels supporting:
- 24 to 48 VDC Transistor Type DO signals
- Module can sink or source up to 250 mADC I/O current
- Input Status LEDs on module frontplate
- Galvanic isolation of 1500 V for up to 1 minute

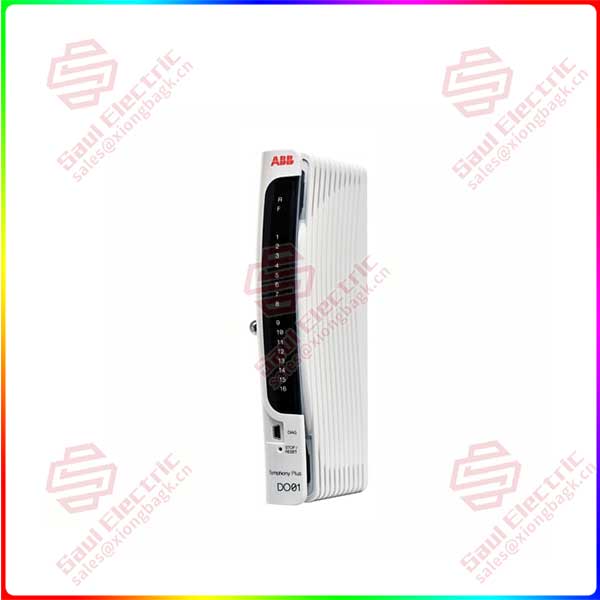

DO01
Product parameter
Product ID:DO01
ABB Type Designation:DO01
Catalog Description:DO module, 16-CH, 24 / 48 VDC max 250mA
Long Description:250mA @ 24VDC / 125 mA @ 48VDC, Individual Channels Isolated. Use Base xBS01-FPH, xBS01-FPN or xBS01-EPD
Product Net Depth / Length:350.52 mm
Product Net Height:129.54 mm
Product Net Width:482.6 mm
Product Net Weight:0.22 kg
ABB Type Designation:DO01
Catalog Description:DO module, 16-CH, 24 / 48 VDC max 250mA
Long Description:250mA @ 24VDC / 125 mA @ 48VDC, Individual Channels Isolated. Use Base xBS01-FPH, xBS01-FPN or xBS01-EPD
Product Net Depth / Length:350.52 mm
Product Net Height:129.54 mm
Product Net Width:482.6 mm
Product Net Weight:0.22 kg
| Article number | DO01 |
| Type | Digital Output |
| Life cycle status | ACTIVE |
| Number of channels | 16 |
| Signal type | DO |
| HART | No |
| SOE | No |
| Redundancy | No |
| Form factor | Standard (190 mm) |
| Mounting | Horizontal Row or Vertical Column |
| MTBF (per MIL-HDBK-217-FN2) | PR E: 387,896 Hours |
| MTTR (Hours) | 1 Hours |
APPLICATION DO01 | ABB | digital output module | DO module 16-CH 24 / 48 VDC max 250mA
| Module power requirements | 24 VDC ± 10%, 65 mA typical, 73 mA max |
| Module power connection | POWER TB on cHBX01L or VBX01T |
| Field IO power | Up to 250 mA per CH @ 24- 48 VDC ±10% |
| Field IO Power, Digital Outputs | max 250 mADC @ 24 to 48 VDC |
| Overvoltage category | Category I for power, inputs or outputs. Tested according to EN 61010-1 |
| Max field cable length | 600 meters (1968 feet) |
| Number of Channels | 16 Open-Collector Transistor Type Digital Outputs |
| Signal ranges and types | Digital Outputs: Max 250 mA @ 24 to 48 VDC |
| Field signal to Logic isolation | Galvanically isolated, 1500 V up to 1 minute |
| Channel isolation | Individual CH-2-CH isolated, 1500 V up to 1 minute |
