Description
Overview

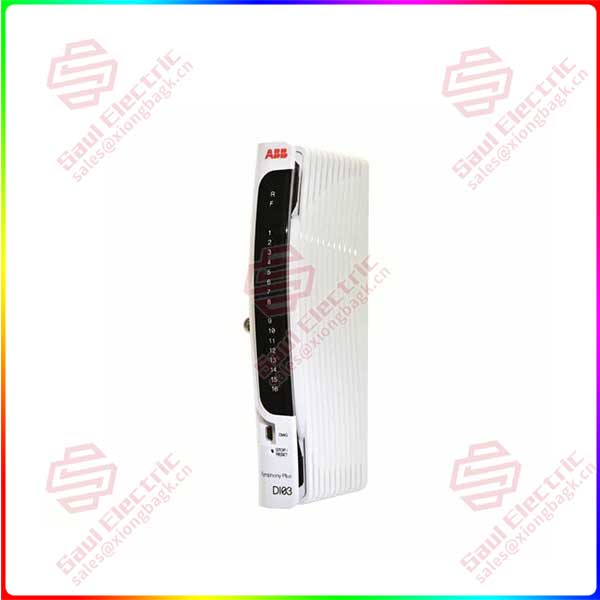

Essential details：DI03 | ABB | digital input module | DI module 16-CH 24 VDC
Product Description
The DI03 digital input module processes up to 16 individual Digital Input signals. Each channel is individually CH-2-CH isolated and supports 24 VDC inputs. FC 221 (I/O Device Definition) sets DI module operating parameters and each input channel is configured using FC 224 (Digital Input CH) to set input channel parameters such as alarm state, debounce period, etc.
The DI03 module does not support Sequence of Events (SOE)
Features and benefits
- 16 individually CH-2-CH isolated DI channels supporting:
- 24 VDC Digital Input signals
- Configurable contact debounce time up to 255 msec
- DI03 module can sink or source I/O current
- Input Status LEDs on module frontplate
- Galvanic isolation of 1500 V for up to 1 minute
- DI03 does not support SOE
DI03
Product parameter
Product ID:DI03
ABB Type Designation:DI03
Catalog Description:DI module, 16-CH, 24 VDC
Long Description:24VDC, Individual Channels Isolated. For SOE support use DI01 module. Use Base xBS01-FPH, xBS01-FPN or xBS01-EPD
Product Net Depth / Length:350.52 mm
Product Net Height:129.54 mm
Product Net Width:482.6 mm
Product Net Weight:0.22 kg
ABB Type Designation:DI03
Catalog Description:DI module, 16-CH, 24 VDC
Long Description:24VDC, Individual Channels Isolated. For SOE support use DI01 module. Use Base xBS01-FPH, xBS01-FPN or xBS01-EPD
Product Net Depth / Length:350.52 mm
Product Net Height:129.54 mm
Product Net Width:482.6 mm
Product Net Weight:0.22 kg
| Article number | DI03 |
| Type | Digital Input |
| Signal specification | 24 VDC |
| Life cycle status | ACTIVE |
| Number of channels | 16 |
| Signal type | DI |
| HART | No |
| SOE | No |
| Redundancy | No |
| Form factor | Standard (190 mm) |
| Mounting | Horizontal Row or Vertical Column |
| MTBF (per MIL-HDBK-217-FN2) | PR C: 238,260 Hours |
| MTTR (Hours) | 1 Hours |
APPLICATION DI03 | ABB | digital input module | DI module 16-CH 24 VDC
| Module power requirements | 24 VDC ± 10%, 67 mA typical, 85 mA max |
| Module power connection | POWER TB on cHBX01L or VBX01T |
| Field IO power | 6.0 mA typical 9.0 mA max @ 24 VDC ± 10% |
| Digital Input Turn ON / OFF voltage | 24VDC: 19.5V (ON) 18.0V (OFF) |
| Overvoltage category | Category I for power, inputs or outputs. Tested according to EN 61010-1 |
| Max field cable length | 600 meters (1968 feet) |
| Number of Channels | 16 Digital Input Channels |
| Signal ranges and types | Digital Inputs: 24 VDC |
| Field signal to Logic isolation | Galvanically isolated, 1500 V up to 1 minute |
| Channel isolation | Individual CH-2-CH isolated, 1500 V up to 1 minute |
