Description
Overview

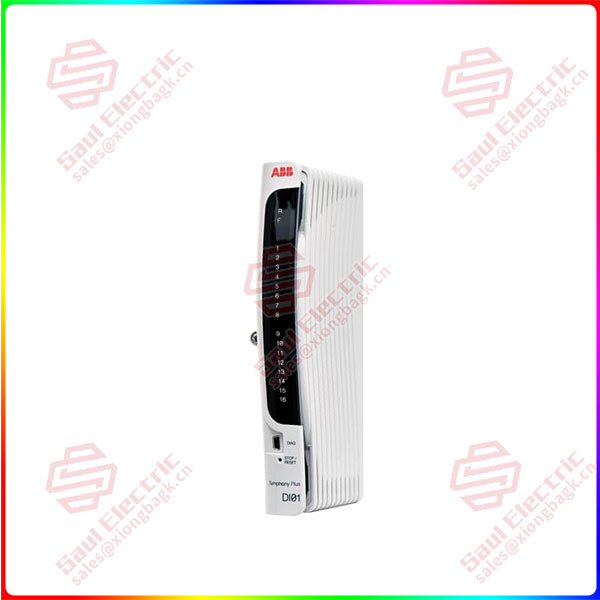

Essential details：DI01 | ABB | DI module 16-CH 24 / 48 VDC SOE
Product Description
The DI01 low voltage digital input module processes up to 16 Digital Input signals. Each channel is individually CH-2-CH isolated and is independently configurable for either 24 or 48 VDC inputs. FC 221 (I/O Device Definition) sets DI module operating parameters and each input channel is configured using FC 224 (Digital Input CH) to set indivdual input channel parameters such as alarm state, debounce period, SOE settings, etc.
The DI01 module supports Sequence of Events (SOE) time-stamping to a resolution of 1 msec. The SOE event data buffer size is configurable to include up to 50 events.
Features and benefits
- 16 individually CH-2-CH isolated DI channels supporting:
- 24 or 48 VDC DI signals
- Configurable contact debounce time up to 255 msec
- 1 msec resolution SOE time-tamping performed by DI01 module
- Configurable SOE event data buffer size
- DI01 module can sink or source I/O current
- Input Status LEDs on module frontplate
- Galvanic isolation of 1500 V for up to 1 minute
DDI01
Product parameter
Product ID:DI01
ABB Type Designation:DI01
Catalog Description:DI module, 16-CH, 24 / 48 VDC, SOE
Long Description:24VDC / 48VDC, Individual Channels Isolated, SOE Time-stamping. Use Base xBS01-FPH, xBS01-FPN or xBS01-EPD
Product Net Depth / Length:350.52 mm
Product Net Height:129.54 mm
Product Net Width:482.6 mm
Product Net Weight:0.2 kg
| Article number | DI01 |
| Type | Digital Input |
| Signal specification | 24 / 48 VDC |
| Life cycle status | ACTIVE |
| Number of channels | 16 |
| Signal type | DI with SOE |
| HART | No |
| SOE | Yes |
| Redundancy | No |
| Form factor | Standard (190 mm) |
| Mounting | Horizontal Row or Vertical Column |
| MTBF (per MIL-HDBK-217-FN2) | PR F: 208,017 Hours |
| MTTR (Hours) | 1 Hours |
APPLICATION DI01 | ABB | DI module 16-CH 24 / 48 VDC SOE
| Module power requirements | 24 VDC ± 10%, 67 mA typical, 85 mA max |
| Module power connection | POWER TB on cHBX01L or VBX01T |
| Field IO power | 3.3 mA typical 3.6 mA max @ 24 VDC ± 10% 6.8 mA typical, 7.2 mA max @ 24 VDC ± 10% |
| Digital Input Turn ON / OFF voltage | 24VDC: 16.2V (ON) 15.2V (OFF) 48VDC: 16.2V (ON) 15.2V (OFF) |
| Overvoltage category | Category I for power, inputs or outputs. Tested according to EN 61010-1 |
| Max field cable length | 600 meters (1968 feet) |
| Number of Channels | 16 Digital Input Channels |
| Signal ranges and types | Digital Inputs: 24 or 48 VDC with SOE support |
| SOE timestamp accuracy | 1 msec resolution for 24 & 48 VDC |
| Field signal to Logic isolation | Galvanically isolated, 1500 V up to 1 minute |
| Channel isolation | Individual CH-2-CH isolated, 1500 V up to 1 minute |
