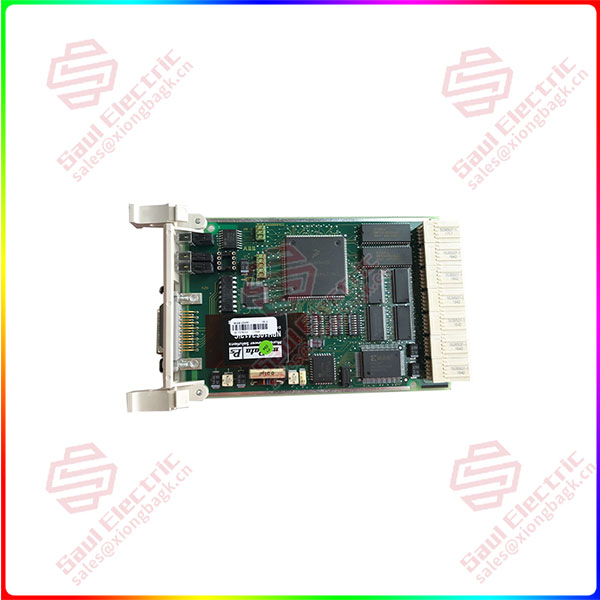

CI546 3BSE012545R1 | Foundation Fieldbus HSE Interface

​Parameter ​Specification
​Product Model CI546 3BSE012545R1
​Manufacturer ABB
​Type Foundation Fieldbus HSE Interface
​Protocols FF HSE IEC 61158-5/-6, H1 via HSE Bridge
​Ports 2× 10/100BASE-TX Ethernet (RJ45)
​Max H1 Segments 32 (via HSE-to-H1 bridging)
​Data Transfer Rate 100 Mbps (full duplex)
​Safety Rating SIL 2 (IEC 61508)
​Power Supply 24 VDC ±10% (via AC 800M backplane)
​Hazardous Certification ATEX/IECEx Ex nA IIC T4 Gc, Zone 2
​Operating Temperature -40°C to +70°C
​Humidity 5–95% non-condensing
​MTBF >250,000 hours (IEC 61709)
​Certifications UL, CE, DNV GL, RoHS
​Dimensions 198 × 35 × 125 mm (H×W×D)
Add to quote
Categories: ,

Description

Product Overview
The ​ABB CI546 3BSE012545R1 is an industrial-grade ​Foundation Fieldbus HSE (High-Speed Ethernet) interface module for ABB’s AC 800M control system, designed to bridge high-level process automation with field-level instrumentation. As a critical component of ABB’s 800xA Extended Automation platform, the ​CI546 3BSE012545R1 enables deterministic communication (≤500 µs latency) with Fieldbus devices while supporting IEC 61804-3/EITF functionality block standardization. Its dual-redundant 100 Mbps Ethernet ports ensure continuous data exchange for real-time control loops, diagnostics, and asset management across refineries, chemical plants, and power generation facilities. With integrated Link Active Scheduler (LAS) capabilities and SIL 2 certification (IEC 61508), this module maintains operational integrity in explosive atmospheres (ATEX Zone 2) and harsh environments (-40°C to +70°C).

Technical Specifications

​Parameter ​Specification
​Product Model CI546 3BSE012545R1
​Manufacturer ABB
​Type Foundation Fieldbus HSE Interface
​Protocols FF HSE IEC 61158-5/-6, H1 via HSE Bridge
​Ports 2× 10/100BASE-TX Ethernet (RJ45)
​Max H1 Segments 32 (via HSE-to-H1 bridging)
​Data Transfer Rate 100 Mbps (full duplex)
​Safety Rating SIL 2 (IEC 61508)
​Power Supply 24 VDC ±10% (via AC 800M backplane)
​Hazardous Certification ATEX/IECEx Ex nA IIC T4 Gc, Zone 2
​Operating Temperature -40°C to +70°C
​Humidity 5–95% non-condensing
​MTBF >250,000 hours (IEC 61709)
​Certifications UL, CE, DNV GL, RoHS
​Dimensions 198 × 35 × 125 mm (H×W×D)

Key Features & Advantages

Deterministic Fieldbus Integration:

  • Manages ≤16 LAS schedules with microsecond-level synchronization
  • Live device replacement without disrupting control loops
  • Automatic failover to redundant Ethernet path (<100 ms)

CI546 3BSE012545R1

Asset Optimization:

  • Real-time diagnostics: Valve stiction detection, sensor drift alerts
  • Predictive maintenance triggers based on FF device diagnostics (DD files)
  • Integration with ABB Ability™ Field Information Manager

Cybersecurity:

  • MAC address lockdown and VLAN tagging (IEEE 802.1Q)
  • Role-based access control (RBAC) compliant with IEC 62443
  • Encrypted configuration upload/download

Engineering Efficiency:

  • Auto-discovery of FF devices via EDDL/FDT
  • Drag-and-drop configuration in ABB Control Builder
  • Online download of control strategy changes

Application Areas

  • ​Oil Refineries: Control of FCCU reactor temperature cascades via H1 segments
  • ​Chemical Processing: SIL 2-compliant batch reactor pressure control
  • ​Pharmaceuticals: CIP/SIP sequence coordination across BioReactors
  • ​Power Plants: Feedwater valve positioners in coal-fired boilers
  • ​LNG Trains: Cryogenic temperature monitoring (-162°C FF transmitters)
  • ​Pulp & Paper: Kraft digester level control with corrosion-resistant devices
