Description

Product Overview

3BHB003154R0101 (5SXE05‑0156, assembly code GVC707AE01) is a complete ABB press‑pack IGCT integrated power assembly, consisting of press‑pack IGCT silicon chip 5SXE05‑0156 together with gate drive unit board 3BHB003149P201, snubber and auxiliary circuit boards. It is a core power semiconductor component for ABB medium‑voltage converters, responsible for high‑voltage, high‑current power switching inside MV drives.

Medium‑voltage variable‑frequency drives for large motors face strict requirements for switching reliability, surge‑withstand capability and thermal stability. Conventional IGBT modules cannot meet high‑voltage direct‑driven conditions. 3BHB003154R0101 integrates the IGCT chip, gate drive trigger circuit, RC snubber circuit into one assembly. Optical fiber receives trigger commands from control system and implements fast turn‑on / forced turn‑off of high‑power thyristor. Press‑pack package supports liquid cooling or high‑pressure air cooling, suitable for long‑term continuous operation in heavy‑duty industrial environments. It is widely used as drop‑in spare for existing ABB medium‑voltage drive cabinets during overhaul and outage maintenance.

Technical Specifications

Parameter name	Parameter value
Product model	3BHB003154R0101, IGCT chip: 5SXE05‑0156
Manufacturer	ABB
Product type	Press‑pack IGCT complete assembly
Chip type	Integrated Gate‑Commutated Thyristor (IGCT)
Rated repetitive peak off‑state voltage	4500 V
Typical controllable on‑state current	910 A
Gate trigger interface	Fiber‑optic signal
Package form	Press‑pack (pressure‑contact packaging)
Cooling method	Water‑cooled / forced air‑cooled
Assembly weight	Approx. 4.2 kg
Assembly dimensions	280 × 210 × 85 mm
Operating junction temperature	‑40 °C ~ +125 °C
Auxiliary board	Gate unit 3BHB003149P201
Certifications	CE, IEC power‑electronic standards

Key Features and Advantages

press‑pack high‑power integration: 3BHB003154R0101 adopts press‑pack packaging. Multiple components (IGCT chip, gate drive board, snubber circuit) are pre‑assembled as one unit. On‑site maintenance only needs pressure installation, no separate assembly of discrete chips and drive boards, greatly shortening drive‑cabinet outage time.

fiber‑optic trigger for high anti‑interference: Control signals transmitted via optical fiber, completely isolated from high‑voltage power circuit. Effectively resists EMI interference inside medium‑voltage drive cabinets, prevents false triggering caused by high‑voltage surge.

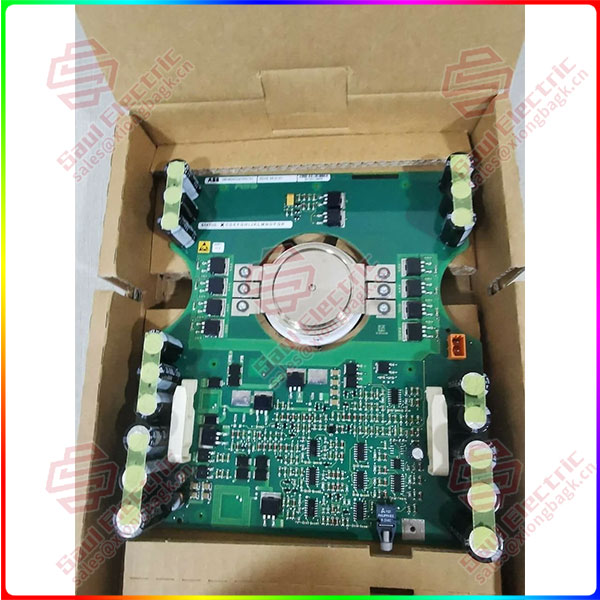

ABB 3BHB003154R0101 5SXE 05-0156

fast forced commutation turn‑off characteristic: IGCT technology enables fast hard turn‑off of large current. It meets high‑dynamic switching demands of medium‑voltage converters for motor control and active front‑end rectifier links.

built‑in snubber protection circuit: On‑board RC snubber absorbs voltage spike during switching, suppresses over‑voltage stress on IGCT chip and improves operational reliability of power unit.

mature drop‑in spare for legacy MV drives: Mechanical dimension, optical interface and electrical parameters match original unit. After pressure‑mount installation and fiber connection, it can replace the old assembly directly without modifying drive control software.

robust thermal performance: Press‑pack structure realizes double‑sided heat dissipation. It adapts to continuous full‑load operation of large‑power medium‑voltage converters in power plant, metallurgy and water‑supply sites.

Application Fields

3BHB003154R0101 5SXE05‑0156 is used inside ABB medium‑voltage frequency‑converter power cabinets. It serves for large‑capacity medium‑voltage motor drive applications in thermal‑power plants, metallurgical mines, large water‑treatment plants and petrochemical industries.

In power‑plant auxiliary systems, it is installed in medium‑voltage converters for boiler induced‑draft fans, forced‑draft fans, circulating‑water pumps, implementing energy‑saving variable‑speed regulation of high‑voltage motors.

Within metallurgy and mining sites, this IGCT assembly works in medium‑voltage drives for large mine hoists, main‑process fans and heavy‑duty conveyors, undertaking rectification and inverter power‑switching tasks.

For drive‑equipment overhaul projects, 3BHB003154R0101 acts as spare replacement for ageing power assemblies. It re‑uses existing power unit cabinet, cooling system and upper‑level control system, avoiding costly full‑drive replacement and extending service life of high‑value medium‑voltage drive assets.

Installation and Maintenance

pre‑installation preparation: Before installing 3BHB003154R0101, completely power‑off and discharge medium‑voltage converter DC‑bus capacitors. Follow torque‑specification requirements for press‑pack installation; uneven pressure will cause chip over‑heating damage. Check optical‑fiber connector for dirt and damage. After mechanical installation, perform power‑unit pressure‑resistance test and trigger‑signal optical‑path test before putting drive into operation.

maintenance recommendations: During unit outages, inspect cooling‑loop status (water flow, leakage, scaling for water‑cooled type). Check fiber‑optic connector cleanliness. Do not scratch press‑pack chip contact surface. This power assembly cannot be hot‑swapped under high‑voltage cabinet energised condition. If repeated power‑unit faults occur, verify cooling condition, pressure torque and fiber‑optic link before replacing assembly. 3BHB003154R0101 has no field‑repairable internal parts; send defective assembly back to ABB‑authorised repair centre.

Product Warranty & Support

Each 3BHB003154R0101 5SXE05‑0156 passes factory power‑cycling test, fiber trigger validation and voltage‑withstand inspection before shipment. Standard equivalent warranty covers manufacturing defects for 12 months from delivery date. Spare‑part sourcing, remote‑technical guidance and SAT‑support services are available for spare‑replacement, installation‑torque guidance and power‑unit commissioning. Application‑engineers offer support for press‑pack installation procedure and fault‑diagnosis. Long‑term spare‑inventory mitigates obsolescence risk for installed ABB medium‑voltage converter assets.

ABB 3BHB003154R0101 5SXE 05-0156 Integrated Gate‑Commutated Thyristor (IGCT)
