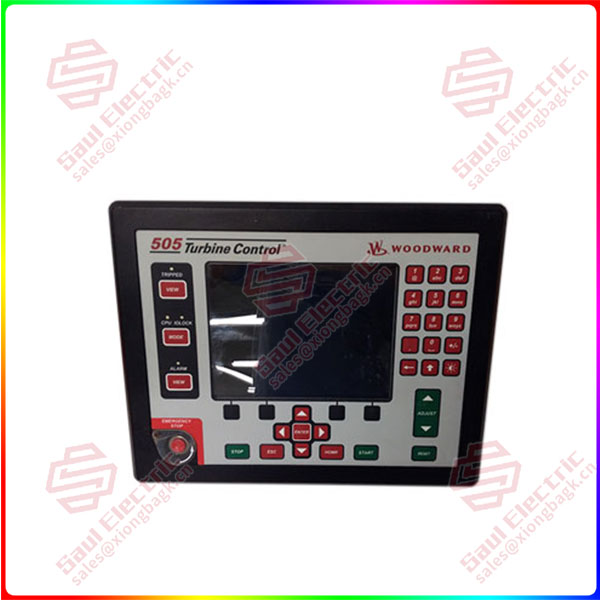

Woodward 8200-1301 Product Overview
The Woodward 8200-1301 is a 505 Digital Governor Turbine Control designed for steam turbine speed, load, and actuator management applications. As part of the Woodward 505 Digital Control series, the Woodward 8200-1301 provides a programmable control platform for single-valve and split-range actuator configurations used in mechanical drive and power generation systems. The controller processes speed signals, load references, operator commands, and protection inputs to regulate turbine operation while maintaining accurate control of connected actuators.
The Woodward 8200-1301 is an AC/DC powered version of the 505 turbine control family, designed for ordinary-location installations requiring 88–264 VAC or 90–150 VDC input power. It combines turbine control logic, actuator output management, monitoring functions, and front-panel configuration capability within a single control unit. The controller supports integration with plant automation systems, including DCS environments, while also allowing standalone turbine operation. It provides configurable control modes for startup, normal operation, calibration, and service activities.
In practical industrial applications, the Woodward 8200-1301 serves as the control center between turbine instrumentation, actuator systems, and plant-level automation. It is commonly installed on steam turbine packages used for power generation, compressor drives, and industrial mechanical applications. For replacement or retrofit projects, engineers should verify actuator type, existing GAP software configuration, I/O mapping, firmware revision, wiring compatibility, and stored application parameters before commissioning.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 8200-1301 |
| Manufacturer | Woodward |
| Product Type | Digital Governor / Turbine Control |
| Product Series | Woodward 505 Digital Governor Series |
| Application | Steam Turbine Speed and Load Control |
| Power Supply | 88–264 VAC / 90–150 VDC |
| Power Consumption | Less than 73 W |
| Actuator Outputs | 2 Proportional Actuator Outputs |
| Output Range | Configurable 4–20 mA / 20–200 mA |
| Control Modes | Configuration, Run, Service Modes |
| Communication Interface | Industrial Communication Interface (System Dependent) |
| Programming Method | Field Programmable Configuration Software |
| Display | Integrated Front Panel Operator Interface |
| Operating Temperature | -30°C to +70°C |
| Protection Rating | IP20 (Installed Condition Dependent) |
| Mounting Method | Panel / Cabinet Installation |
| System Integration | DCS, Turbine Control Systems |
Main Features and Advantages
Precise turbine control platform
The Woodward 8200-1301 provides dedicated control functions for steam turbine applications, managing speed regulation, actuator positioning, and operating sequences. Its control algorithms allow engineers to configure turbine behavior according to specific mechanical drive or generator requirements.
8200-1302
Flexible actuator management
The controller supports single actuator and split-range actuator applications through configurable actuator outputs. The Woodward 8200-1301 provides proportional actuator drive capability with current monitoring functions, allowing accurate control of turbine valves and related mechanical components.
Integrated operator and configuration functions
The front-panel interface allows operators and technicians to perform configuration, monitoring, calibration, and service operations directly from the control unit. This reduces the need for additional local control hardware during commissioning and maintenance activities.
DCS integration capability
The Woodward 8200-1301 can operate as part of a distributed control architecture or as an independent turbine controller. It exchanges operating information with plant systems, allowing turbine status, alarms, and control commands to be incorporated into broader automation strategies.
Application-specific configuration
Woodward 505 controllers are typically configured according to turbine package requirements. Engineers must consider turbine type, actuator characteristics, speed sensing arrangement, trip logic, and plant operating philosophy when commissioning the controller.
Maintenance and lifecycle support
Many steam turbine installations remain operational for decades, making controller replacement and retrofit capability important. The Woodward 8200-1301 allows plants to maintain existing turbine control architectures while replacing aging control hardware. Proper backup of application files and verification of firmware compatibility are essential before installation.
Application Fields
The Woodward 8200-1301 is widely used in industrial steam turbine control applications where accurate speed and actuator regulation are required. In power generation plants, it controls steam turbines used for electrical generation by managing turbine speed, load response, and valve positioning. The controller supports stable generator operation by maintaining accurate turbine control during startup, synchronization, and changing electrical demand.
In oil and gas facilities, the Woodward 8200-1301 is commonly applied to turbine-driven compressors, pumps, and mechanical drive systems. These applications require reliable turbine control because equipment operation directly affects process continuity and production performance.
Chemical and petrochemical plants use steam turbines for both power generation and process equipment drives. The controller provides the interface between turbine instrumentation, actuator systems, and plant automation networks, helping operators maintain controlled operation under varying process conditions.
In industrial manufacturing facilities, turbine-driven equipment such as large compressors, blowers, and auxiliary power systems can use the Woodward 8200-1301 for speed and load management. Its programmable architecture allows adaptation to different turbine package designs.
The controller is also suitable for retrofit projects involving existing Woodward 505 installations. By replacing aging control hardware while retaining existing turbine mechanical systems, plants can extend equipment service life and reduce modification requirements.
