416NHM30032A — Modbus Plus PCI-85 Dual-Cable Interface Adapter

Product Overview

The 416NHM30032A is the dual-cable version of the PCI-85 Modbus Plus interface adapter from Schneider Electric, carrying the Modicon numbering scheme that has identified Modbus Plus hardware since the 1990s. It mounts in a single PCI slot of an IBM PC or compatible and links the computer to a Modbus Plus network, allowing PC-based applications to exchange data with Schneider Electric programmable controllers — Quantum, Momentum, Compact, and other Modicon platforms — as well as with every other device that shares the token-passing Modbus Plus medium.

The card’s practical purpose is to make a plant-floor or control-room PC a first-class citizen of the Modbus Plus network. Through it, operators and engineers get data acquisition and monitoring, remote PLC programming, program upload, download and archiving, and direct interfacing to manufacturing applications running on plant computers — without adding a gateway or a second PLC network. The dual-cable configuration sets this model apart from its single-cable sibling: two Modbus Plus ports allow the PC to be connected to a redundant cabling scheme, so a break or fault on one cable path does not silently remove the workstation from the network.

The A suffix marks the enhanced generation of this adapter. Officially, 416NHM30032 was replaced by 416NHM30032A, with the new card adding multi-voltage plug-and-play support for both 3.3V and 5V PCI buses. For plants still operating Modbus Plus infrastructure — and there are many, because the medium is simple, deterministic, and well understood — the 416NHM30032A is the direct path to keep a modern PC on an aging but dependable network.

Technical Specifications

参数名称	参数值
Product Model	416NHM30032A
Manufacturer	Schneider Electric (Modicon)
Product Type	Modbus Plus PCI bus interface adapter (PCI-85), dual cable
Bus Interface	PCI slot, plug-and-play, 3.3V or 5V per PCI 2.2
Network Ports	2 × 9-pin D-sub Modbus Plus ports (redundant cabling)
Network Capacity	Up to 32 nodes without repeaters, 64 with repeaters
Current Consumption	250 mA
Board Size	6.6 × 4.7 in (approx. 168 × 119 mm)
Operating Temperature	0…+60 °C (storage -40…+85 °C)
Humidity	93% RH @ 60 °C, non-condensing
Vibration / Shock	10–57 Hz 0.07 mm DA, 57–150 Hz 1 g; 30 g, 11 ms (non-operating)
Software Support	32-bit drivers for Windows 98 / NT 4.0 SP3+ / 2000 / XP; MBX Driver Suite v4.2+

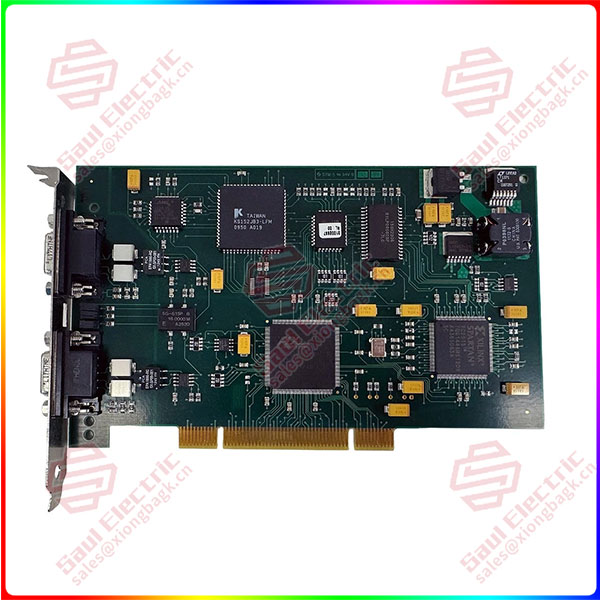

416NHM30032A

Key Features and Advantages

Redundant cabling capability: The two Modbus Plus ports are the defining feature of the 416NHM30032A. In plants where the workstation connection is critical, the PC can be wired to two independent cable paths; when one path fails, communication continues on the other instead of leaving the HMI or programming terminal isolated from the controllers.

True plug-and-play operation: The card is a multi-voltage PCI component with no switches to set before installation. The operating system’s plug-and-play mechanism handles resource allocation, and the driver suite does the rest — which makes field replacement of a failed adapter a matter of minutes rather than an afternoon of IRQ and address planning.

Deterministic network access: Modbus Plus is a token-passing peer-to-peer network, and the PCI-85 card participates as a full node with its own network number and node address. That gives PC applications the same deterministic access rights as a PLC on the bus, which is exactly what supervisory and diagnostic software needs.

Broad software compatibility: The supplied driver CD works with the programming packages that maintain legacy Modicon systems — Concept, Modsoft, ProWorx, and Unity — and with Monitor Pro HMI, the MBX Suite monitoring tools, and MBX Demo. C libraries are provided for MSVC 4.2, 5.0, and 6.0, so custom applications can talk to the network without third-party middleware.

A controlled upgrade path: Because 416NHM30032A is the official enhanced replacement for 416NHM30032, plants get a defined migration route for their spare-part and PC-refresh programs instead of an orphaned card. Where the computer platform has moved beyond Windows XP, the Modbus Plus PCIe card 416NHM30042A continues the same role on the modern bus — the adapter family, not a dead end.

Engineered for industrial PC life: Operating range of 0…+60 °C, 30 g non-operating shock, and vibration tolerance to 1 g at up to 150 Hz mean the card survives life in panel PCs and industrial workstations, not just office desktops.

Application Areas

The 416NHM30032A earns its place wherever a PC must talk to a Modbus Plus network. In process plants — chemical, oil and gas, water and wastewater, food and beverage — it turns a control-room workstation into a data acquisition and monitoring node that reads controller data directly over the bus, no gateway required. Maintenance and engineering staff use it for remote PLC programming: connecting Concept, Modsoft, ProWorx, or Unity to a remote controller, and performing program upload, download, and archiving from the desk instead of the cabinet.

In manufacturing lines, the card links plant computers to production machinery and to the manufacturing execution systems that collect data from them. HMI software such as Monitor Pro runs on the same PC, so operator stations and diagnostic tools share one Modbus Plus connection. Where the network supports it, the dual-cable model protects that connection with redundant wiring on critical lines.

The adapter is equally at home in data-concentrator roles, where a PC gathers values from multiple Modicon PLCs — up to 32 nodes without repeaters and 64 with repeaters on the medium — and forwards them to higher-level systems, and in legacy migration projects, where an existing Modbus Plus plant is being kept productive while the surrounding IT infrastructure moves to modern PCs. In every case, the 416NHM30032A does one thing: it makes the PC a reliable, addressable participant in the same network as the controllers it serves.

Installation and Maintenance

Installation preparation: Follow the sequence in the official user guide — install the device driver software first, then shut down the PC, fit the card into an available PCI slot, and connect the network cable. Handle the board with anti-static precautions. Before energizing, assign the Modbus Plus network number and node address using the supplied configuration utility, and record both on the label provided; attach one label to the computer and keep the spare. For the dual-cable 416NHM30032A, wire both ports into the redundant cabling scheme so that a single cable fault does not take the workstation offline. Confirm that the MBX driver suite version is 4.2 or higher, as earlier versions are not supported by this card.

Maintenance advice: The green status LED indicates network communication; when it is off while the host runs, check the cable, connector, and node address before suspecting the card. Keep the node address and network number documented per computer, since a duplicate address on the bus is the most common cause of intermittent access errors. Note that the official 32-bit drivers target Windows 98, NT 4.0 SP3 or higher, 2000, and XP; if the workstation has moved to a newer operating system, plan for the PCIe adapter 416NHM30042A rather than forcing the legacy driver. Avoid removing or inserting the card with power applied, and keep one spare 416NHM30032A per control-room network so a failed card can be swapped between shifts.

Product Warranty

The 416NHM30032A is supplied with the manufacturer’s warranty and ships with the Modbus Plus driver suite CD-ROM and configuration utilities, so the delivered card is ready for deployment on a current Windows platform out of the box. For the large installed base of Modbus Plus networks, both new and tested surplus cards are available, and every unit can be verified against the official user guide specifications — board size, current consumption, and environmental ratings — before shipment. Documented repair services exist for the Modicon adapter family, and application support covers driver installation, node addressing, and the migration question that owners of legacy networks actually face: how to keep a reliable PC connection on a Modbus Plus system while the rest of the plant moves forward. With the PCI-85 family still supported by the ecosystem of Modbus Plus tools and programming software, the 416NHM30032A remains a serviceable, supported component of legacy automation infrastructure.
