3500/42M 140734-02 — Proximitor/Seismic Monitor (4-Channel)

Product Overview

The 3500/42M 140734-02 is a four-channel Proximitor and seismic monitor from Bently Nevada, a Baker Hughes business, and one of the workhorse modules of the 3500 Machinery Protection System. Ordered under the part number 140734-02, the monitor accepts inputs from one to four proximity, velocity, or acceleration transducers, conditions each signal into the vibration and position values a machine train actually needs, and continuously compares those values against user-programmable alarm setpoints to drive protection logic.

What makes the 3500/42M valuable is its programmability. Using the 3500 Rack Configuration Software, each channel pair can be assigned any of the classic Bently Nevada measurement functions — radial vibration, thrust position, differential expansion, eccentricity, shaft absolute, velocity, acceleration, REBAM, and circular acceptance region — so a single module type covers the protection scope that earlier systems required several dedicated cards to deliver. Channels are programmed in pairs, and each pair can perform up to two functions simultaneously.

The module’s position in the 3500 rack is equally deliberate: it occupies one full-height front slot with a matching rear I/O slot, rides the rack’s redundant power architecture, and reports its own health through OK, TX/RX, and BYPASS front-panel indicators. For plants running turbines, compressors, and large rotating machinery under API-style protection philosophies, the 3500/42M is the module that turns raw transducer signals into the alarming, recording, and buffered diagnostics that keep machines online without relying on a software host for protection.

Technical Specifications

参数名称	参数值
Product Model	3500/42M 140734-02 (ordering number 140734-02)
Manufacturer	Bently Nevada, a Baker Hughes business (USA)
Product Type	4-channel Proximitor/Seismic monitor, 3500 Machinery Protection System
Inputs	1–4 proximity, velocity, or acceleration transducer signals
Input Impedance	10 kΩ (Proximitor and acceleration inputs)
Programmable Functions	Radial vibration, thrust position, differential expansion, eccentricity, shaft absolute, velocity, acceleration, REBAM, circular acceptance region
Accuracy	±0.33% of full scale typical, ±1% max; phase error ≤ 3°
Recorder Outputs	+4…20 mA per channel, 0–600 Ω load, 0–12 V compliance
Buffered Outputs	Per-channel coaxial, 550 Ω impedance, short-circuit protected
Transducer Supply / Power	-24 Vdc; 7.7 W typical consumption
Operating Environment	-30…+65 °C (storage -40…+85 °C), 95% RH noncondensing
Physical / Compliance	241.3 × 24.4 × 241.8 mm, 0.91 kg; FCC, EMC/LVD/RoHS, ABS, DNV GL; cNRTLus and ATEX/IECEx options

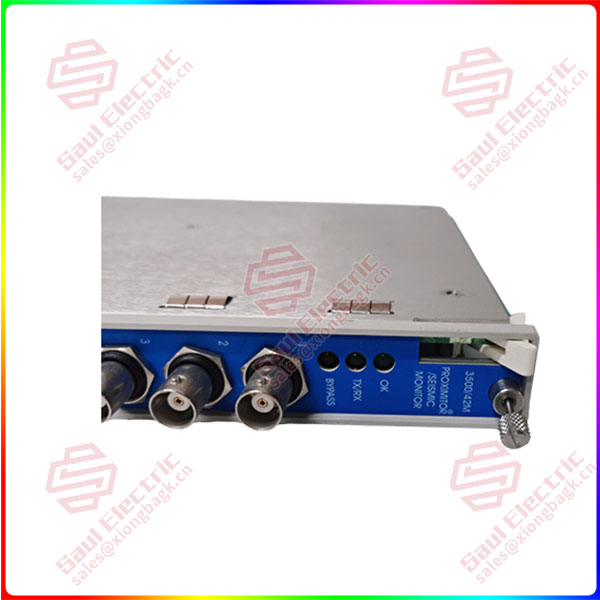

3500/42M 140734-02

Key Features and Advantages

Four channels in one rack slot: Four independent channels per module at a single full-height slot position give protection engineers more measurement density per rack, which matters on large turbine trains where vibration, thrust, and eccentricity channels compete for limited rack capacity.

One module, every major measurement function: The channel-pair programming model lets the 3500/42M act as a radial vibration monitor, thrust monitor, differential expansion monitor, eccentricity monitor, or shaft absolute monitor depending on configuration — and a single channel pair can run two functions at once. Plants stock one spare module type instead of five.

Protection-grade alarm handling: Alarms compare every active static value against alert setpoints and up to two danger setpoints, with setpoint accuracy within 0.13% of the desired value and programmable time delays from 0.1 to 60 seconds. This is hardwired, self-contained protection that operates independently of the software host, exactly as machinery protection standards expect.

Measurement-grade accuracy: Amplitude accuracy of ±0.33% of full scale typical (±1% maximum) and a maximum phase error of 3° support not just alarming but meaningful diagnostics, so the same module feeds both the protection chain and the analysis tools.

Diagnostics without compromising protection: Each channel provides a short-circuit-protected buffered transducer output at 550 Ω, so an engineer can connect an analyzer or diagnostic software to examine the live signal while the monitor continues to protect the machine uninterrupted.

Flexible I/O architecture: Internal or external termination I/O modules, dedicated Shaft Absolute I/O variants, and a TMR (triple modular redundant) option whose three bussed channels present an effective 50 kΩ to a single transducer give the module family a fit for everything from conventional racks to high-integrity protection systems.

Certified for the environments where machines are hardest to protect: With cNRTLus Class I Division 2 / Zone 2 and ATEX/IECEx approvals, plus ABS and DNV GL marine certifications, the 3500/42M can be deployed on offshore platforms, gas plants, and vessels where zone classification would otherwise push monitoring hardware out of the machine area.

Application Areas

The 3500/42M protects the machines that cannot afford an undetected fault. On steam and gas turbines it monitors radial vibration at the bearing journals and thrust position along the rotor, using proximity probes whose signals are converted at the module with the classic 3.94 mV/μm sensitivity. On large steam turbines, differential expansion channels track rotor-to-casing growth during run-up and cooldown, and eccentricity channels watch slow-speed shaft bow — both functions the channel-pair flexibility of the 3500/42M can accommodate in one module.

Centrifugal compressors in refineries, LNG plants, and offshore installations use the module for shaft absolute vibration, where case motion from piping forces and foundation settling must be removed from the true shaft response; REBAM channels detect sleeve-bearing damage that conventional radial vibration alarms miss. Seismic transducers bring casing and bearing-housing vibration into the same module for machines where proximity probes alone are insufficient.

Power plants, petrochemical units, pump stations, and marine propulsion trains round out the population, typically with the module reporting recorder values to the plant DCS over 4…20 mA while alarm relays and the rack’s voting logic handle the trip decisions. In every case the 3500/42M performs the same role: continuously converting transducer signals into protection decisions and making the same signals available for diagnostics, without depending on a connected computer.

Installation and Maintenance

Installation preparation: Confirm the ordering number and the approval option of the 3500/42M 140734-02 against the plant’s hazardous-area classification before racking it, since the cNRTLus, ATEX, and IECEx variants differ in their permitted installation drawings. Install the monitor in a full-height front slot of the 3500 rack and the matching I/O module in the corresponding rear slot, and verify that the I/O module type — internal or external termination, standard or Shaft Absolute — matches the wiring method used in the marshalling cabinet. Route the transducer cables to the I/O terminals with proper shielding and grounding per the control drawing, and confirm the -24 Vdc transducer supply reaches the probes. Program the channel pairs with the 3500 Rack Configuration Software: assign the measurement function, transducer sensitivity (for example 100 or 200 mV/mil), full-scale range, alert and danger setpoints, and alarm time delays before putting the machine into service.

Maintenance advice: Use the front-panel indicators as the first-line diagnostic: OK confirms module health, TX/RX confirms rack communication, and BYPASS shows that the channel is in maintenance bypass — a state that must be restored before the machine can be considered fully protected again. During outages, verify the recorder outputs against a calibrated 4…20 mA source, confirm that the buffered transducer outputs still track the live signal on an analyzer, and check the barrier or termination wiring for signs of moisture or loose terminals. Keep a documented spare 3500/42M with the same ordering number and approval option, since a failed protection monitor must be swapped against the same certified configuration, not a generic equivalent.

Product Warranty

The 3500/42M 140734-02 is supplied with the Bently Nevada standard warranty, with new and tested surplus units verified against the official datasheet specifications — channel count, input impedance, recorder output resolution, and environmental ratings — before shipment. Each unit carries the certification documentation appropriate to its approval option, including the cNRTLus, ATEX, or IECEx marking and the corresponding installation drawing references, so replacements preserve the protection system’s certification basis. For the very large 3500 installed base worldwide, the supply chain provides application support for channel configuration, spare-part planning, and migration to the current Bently Nevada monitoring generations, backed by factory documentation accessible through the Bently Nevada technical support ecosystem — keeping the protection function verifiable, repairable, and certifiable for the life of the machine.
